Replacing the Lamp Epson EX30/EX50/EX70 Multimedia Projectors

The life span of the projection lamp is about 3000 hours if Brightness Control in the Settings menu is set to High (default), and 4000 hours if Brightness Control is set to Low.

Warning Let the lamp cool fully before replacing it. In the unlikely event that the lamp has broken, small glass fragments may be present and should be removed carefully to avoid injury. If the projector has been installed on the ceiling, you should stand to the side of the lamp cover, not underneath it. If the lamp is used after the replacement period has passed, the possibility that the lamp may break increases. When a lamp replacement message appears, replace the lamp with a new one as soon as possible, even if it is still working.

It is time to replace the lamp when:

• The projected image gets darker or starts to deteriorate.
• The message Replace the lamp appears on the screen and the Lamp light flashes orange. To maintain projector brightness and image quality, replace the lamp as soon as possible.
  You may also need to replace the lamp if the Lamp light flashes or stays on red.

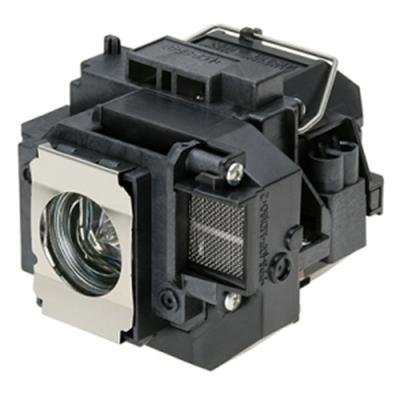

Request The Projector lamp part number V13H010L41 (ELPLP41).

Binding: Electronics
Manufacturer: Epson

List Price: $ USD 199.99

Brand: Epson
Model: V13H010L41

Model: V13H010L41
010343864108

Follow these steps to replace the lamp:

1. Turn off the projector and, after the projector beeps twice, unplug the power cord.
2. Let the projector cool for at least an hour (if it has been on). The lamp is extremely hot immediately after use.
3. Loosen the lamp cover screw (you cannot remove it). Then slide the lamp cover off.

4. Loosen the two screws holding the lamp in place (you can’t remove them).

5. Hold the lamp as shown and pull it straight out.


   Note

   The lamp(s) in this product contain mercury. Please consult your state and local regulations regarding disposal or recycling. Do not put in the trash.


6. Gently insert the new lamp. (If it doesn’t fit easily, make sure it is facing the right way.) Then tighten its screws.

7. Replace the lamp cover, then tighten its screw.

   Note
   Tighten the lamp cover securely so you do not receive a lamp cover error when you turn the projector back on.

8. Reset the lamp timer.

Resetting the Lamp Timer
After you replace the lamp, you need to reset the lamp timer using the projector’s menu system.

1. Press the Menu button on the remote control or on the projector’s control panel. You see the main menu.
2. Select the Reset menu and press Enter. You see this screen:

3. Select Reset Lamp Hours and press Enter.
4. When you see the prompt, select Yes and press Enter.
5. When you’re finished, press Menu to exit.
